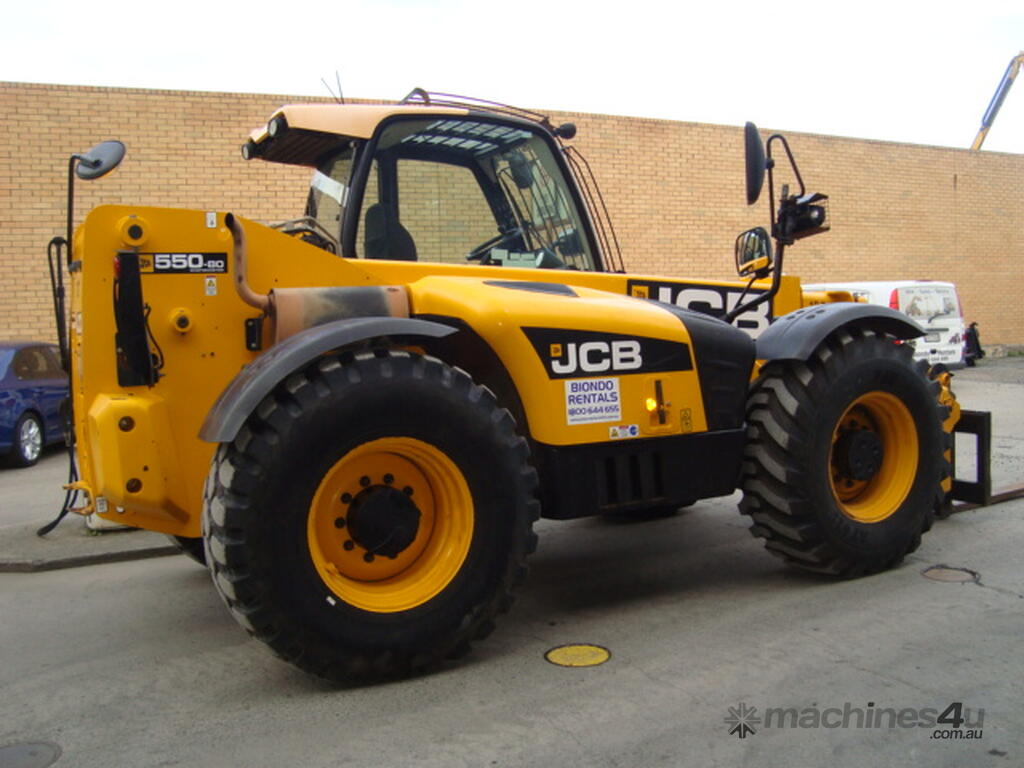

JCB Telehandler 550-80
JCB Telehandler 550-80 : $100,000 AUD ($110,000 Inc. GST)
Overall height m (ft-in) 2.59 (8-6)
Overall width (over tyres)* m (ft-in) 2.42 (7-11)
Inside width of cab m (ft-in) 0.94 (3-1)
Front track m (ft-in) 1.98 (6-6)
Wheelbase m (ft-in) 2.75 (9-0)
Overall length to front of tyres m (ft-in) 4.42 (14-6)
Overall length to front of carriage m (ft-in) 5.27 (17-3)
Ground clearance m (ft-in) 0.40 (1-4)
Carriage rollback angle degrees 47.0
Carriage dump angle degrees 33.0
Weight kg (lb) 10150 (22377)
Displacement litres (in3) 4.4 (269)
No.of cylinders 4
Bore size mm (in) 103 (4.05)
Stroke mm (in) 132 (5)
Power 2200rpm kW (hp) 97 (130) / 108 (145)
Torque 1500rpm Nm (lb/ft) 550 (405)
Maximum lift capacity kg (lb) 4999 (11001)
Lift capacity to full height kg (lb) 2500 (5512) Fixed 4000 (8818) Sway
Lift capacity at full reach kg (lb) 1500 (3307)
Lift height mm (ft-in) 8.1 (26.7)
Reach at maximum lift height mm (ft-in) 0.92 (3-0)
Maximum forward reach mm (ft-in) 4.47 (14-8)
Reach with 1 tonne load mm (ft-in) 4.47 (14-8)
Placing height mm (ft-in) 7.45 (24-5)
Quiet, safe and comfortable cab conforms to ROPS ISO 3471 and FOPS ISO 3449. Tinted glass all round with laminated front and
roof screen. Roof bars, front, rear and roof screen wash/wipe and heater/screen demister. Opening rear window. Audio-visual
warning system for coolant temperature, water in fuel, engine oil pressure, air cleaner, battery charge, transmission oil temperature
and pressure. Brake charge, hourmeter and road speed indicator. Engine temperature, fuel gauge and clock.
Adjustable steer column with stalk bar powershift change and forward reverse shuttle. Floor mounted throttle pedal.
Adjustable deluxe suspension seat with adjacent park brake.
Automatic eye level audio-visual load moment indicator warning system receiving a signal from a load sensor on the rear axle.
This system continuously monitors the machine’s forward stability and leaves the operator in control at all times.
Cab mounted single
lever servo joystick, incorporating forward/neutral/reverse, transmission disconnect, with progressive extend/
retract and auxiliary incorporating constant flow facility.
Seat mounted single lever servo joystick incorporating forward/neutral/reverse, transmission disconnect, with progressive extend/retract and auxiliary incorporating constant flow facility
Service brakes: Hydraulically activated power brakes, self-adjusting, oil-immersed in-board multi-disc type on front and rear axles.
Parking brake: Hand operated oil immersed disc type.
JCB powershift transmission incorporating torque converter, bevel box and a 4 speed powershift gearbox in one resiliently mounted unit. A combined steering column mounted switch incorporating directional control and 4 forward and 4 reverse powershift gears. Travel speed 38kph (23mph). Permanent 4 wheel drive.
Front and rear drive axles: Epicyclic hub reduction drive/steer axles with torque proportioning differentials.
SAFETY CHECK VALVES
Fitted to carriage tilt, telescopic and boom lift rams.
Hydrostatic power steering with power track rods on both axles.
Three steer mode options: front wheel steer; all wheel steer; crab steer: operated from in the cab by a selection switch, with
